Home > products > Wooden Acoustic Panel > Conference Room Acoustic Treatment with Perforated Acoustic Panel in 12mm Thickness

Conference Room Acoustic Treatment with Perforated Acoustic Panel in 12mm Thickness

Product Details

Place of Origin: Guangdong, China

Brand Name: MQ Acoustic

Certification: CE, ASTM, ISO

Model Number: Perforated Acoustic Panel

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 100 square meters

Price: $7.99/square meters >=100 square meters

Packaging Details: Carton Box, Pallet

Supply Ability: 5000 Square Meter/Square Meters per Month

Get Best Price
Highlight:

12mm thickness wood panel acoustic

,

12mm thickness wooden acoustic panel

,

customized wood panel acoustic

Warranty:
5 Years
After-sale Service:
Online Technical Support, Return And Replacement, Other
Project Solution Capability:
Total Solution For Projects, Others
Application:
Sports Venues
Design Style:
Modern
Model NO.:
Perforated Acoustic Panel
Color:
Customized
Core Material:
Normal MDF, E1 MDF, Fr MDF, MGO, Solid Wood
Pattern:
32/32/8(6), 16/16/8(6), 8-8-1 Or Customized
Installation Accessories:
Steel Keel
Transport Package:
Carton Box, Pallet
Trademark:
MQ Acoustics
HS Code:
4411142900
Thickness:
12mm/15mm/18mm
Port:
GUANGZHOU
Warranty:
5 Years
After-sale Service:
Online Technical Support, Return And Replacement, Other
Project Solution Capability:
Total Solution For Projects, Others
Application:
Sports Venues
Design Style:
Modern
Model NO.:
Perforated Acoustic Panel
Color:
Customized
Core Material:
Normal MDF, E1 MDF, Fr MDF, MGO, Solid Wood
Pattern:
32/32/8(6), 16/16/8(6), 8-8-1 Or Customized
Installation Accessories:
Steel Keel
Transport Package:
Carton Box, Pallet
Trademark:
MQ Acoustics
HS Code:
4411142900
Thickness:
12mm/15mm/18mm
Port:
GUANGZHOU
Conference Room Acoustic Treatment with Perforated Acoustic Panel in 12mm Thickness
Products Description

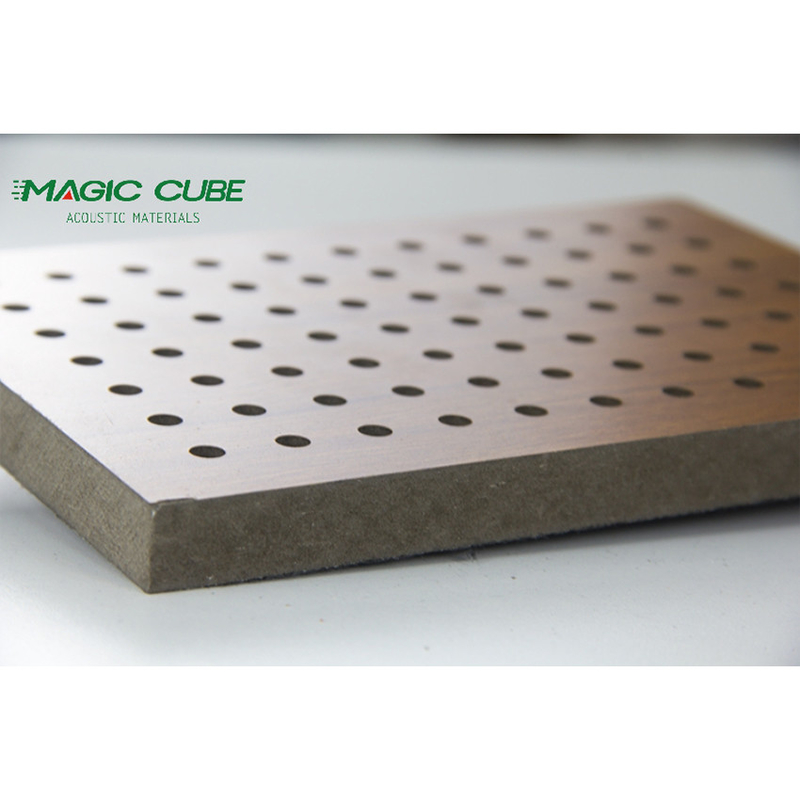

The perforated acoustic panel is a kind of sound-absorbing material directly perforated on MDF panel, MGO panel, aluminum panel and other substrates. The wooden perforated acoustic panel is very selective for the sound absorption spectrum, and has good sound absorption performance for the middle and low frequencies.

The standardized design adopts the groove and keel structure, which is easy to install. It is often used for wall or ceiling decoration. The diameter of the holes and spacing can be customized according to design requirements.

Material E1 MDF, FR MDF, MgO Composite, etc.
Front Surface Melamine, PP, Wood Veneer, Paint, etc.
Standard Dimension 600mm x 600mm, 600mm x 1200mm, 1200mm x 1200mm, 1200mm x 2400mm
Standard Thickness 12mm, 15mm, 18mm
Distances of Two Holes 8/8mm, 16/16mm, and 32/32mm
Diameter of Holes 1, 2, 3, 4, 5, 6, 8, 10, 12mm, etc.
Standard Patterns E8/8/3, E16/16/6, E16/16/8, E32/32/6, E32/32/8, V8/8/3, V16/16/6, V16/16/8, V32/32/6, V32/32/8
Hole Arrangement Linear (E), Staggered (V)
Eco-Friendly Test EN 13986 = E1
Fire-Rated Test EN 13501-1 = Class B s1, d0
Details Images
Conference Room Acoustic Treatment with Perforated Acoustic Panel in 12mm Thickness 0
Conference Room Acoustic Treatment with Perforated Acoustic Panel in 12mm Thickness 1
Conference Room Acoustic Treatment with Perforated Acoustic Panel in 12mm Thickness 2
Conference Room Acoustic Treatment with Perforated Acoustic Panel in 12mm Thickness 3
Conference Room Acoustic Treatment with Perforated Acoustic Panel in 12mm Thickness 4
Conference Room Acoustic Treatment with Perforated Acoustic Panel in 12mm Thickness 5
Conference Room Acoustic Treatment with Perforated Acoustic Panel in 12mm Thickness 6
Conference Room Acoustic Treatment with Perforated Acoustic Panel in 12mm Thickness 7
FAQ
1. Can I get free samples and how long does it take to produce samples?
If the samples you need are in our stock, they will be provided to you free of charge. Customized samples usually take about a
week to produce.

2. Do you accept OEM or ODM order?
Yes, as a manufacturer, we can produce acoustic materials based on your samples or drawings. Please do not hesitate to contact us.

3. How to get an accurate quotation?
Can provide us with detailed product information, such as pattern, core material, surface, etc. If you have CAD or other drawings,
don't hesitate to send it to us.

4. Payment terms
T/T 30% deposit before production, 70% balanced payment before delivery.

For more information, please feel free to contact us.
